Homeowner/Landowner Chainsaws

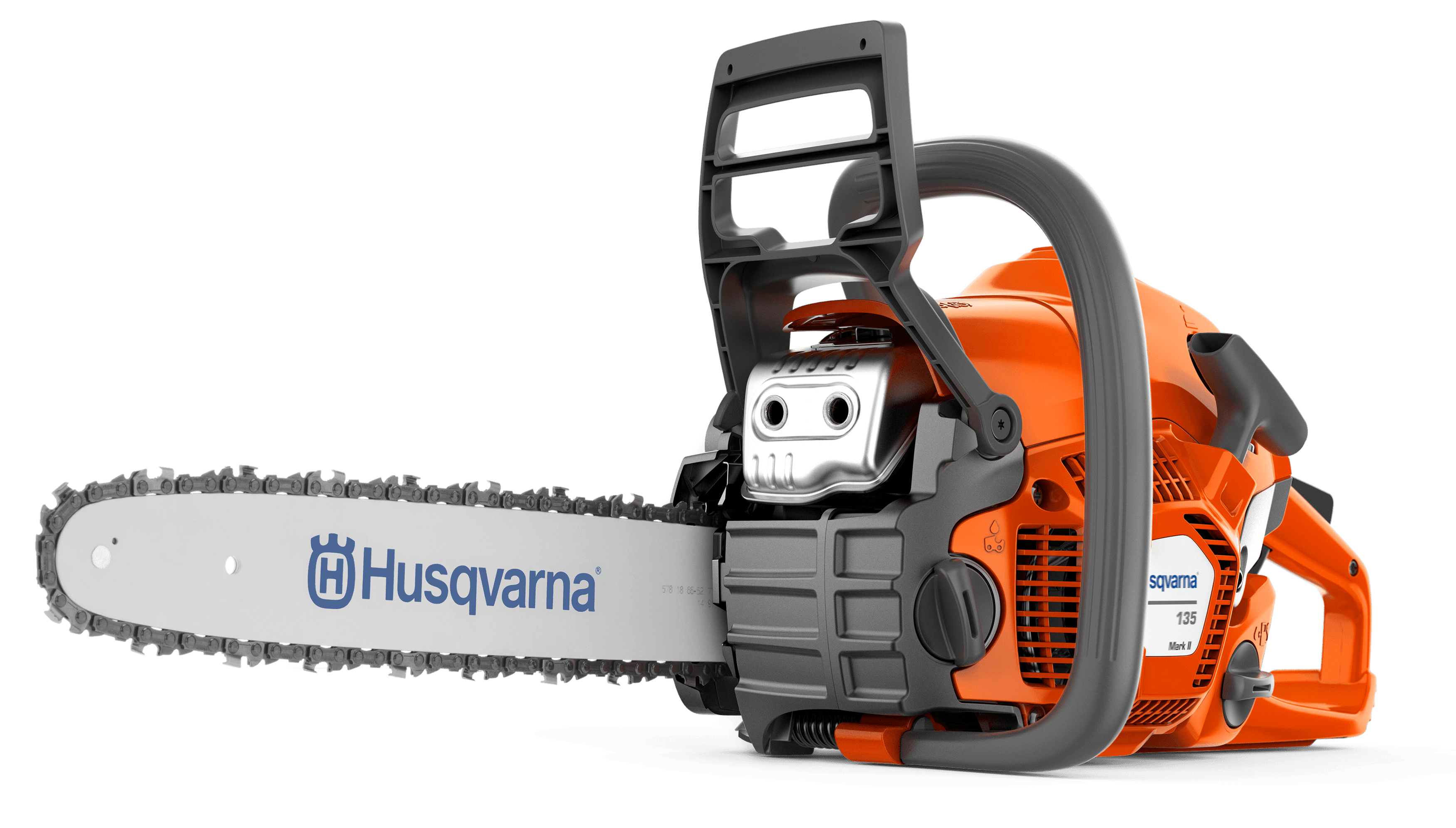

135 Mark II

Loading...Rec. retail price incl. GST SKU: 967861846
  • Output shaft power1.6 kW
  • Cylinder displacement38 cm³

Product description

Robust, reliable and easy to use saw with ample cutting performance for homeowners. The perfect garden chainsaw for occasional cutting tasks such as cutting firewood and felling smaller trees. Starts quickly and handles easily, and thanks to the side mounted chain tensioner, tensioning the chain is both quick and easy.

5-year warrantyFinance options

Product Information

Features (8)

Extends the interval between filter cleaning, improving efficiency and increases engine life. image

Air Injection

Centrifugal air cleaning system expels larger dust and debris particles before they reach the air filter to help improve engine life

Specially-designed engine and starter for easy and fast starting with minimum effort image

Smart Start® Technology

Specially-designed engine and starter for easy and fast starting with minimum effort

Quickly and easily adjust the chain image

Side Chain Tensioning

Quickly and easily adjust the chain

Delivers lower fuel consumption and reduced exhaust emission levels in accordance with the world´s most stringent environmental regulations. image

Powerful and Efficient X-TORQ® Engine

Great power and efficiency

Effective inertia-activated chain brake image

Inertia chain brake

Reduces the likelihood of injury due to kickback

Air purge removes air from carburetor and fuel system for easy starting image

Quick Start with Air Purge

Air purge removes air from carburetor and fuel system for easy starting

Combined choke/stop control allows for easier starting and reduces the risk of the engine flooding. image

Combined Choke/Stop Control

Provides easier starting and reduces the risk of engine flooding

Effectively minimising vibrations by isolating the engine from the handles  reducing operator fatigue. image

Two mass principle

Dampeners between the engine and chassis significantly reduce vibrations so you can work more comfortably

Specifications

Art No: 967861846
Output shaft power1.6 kW
Weight (excl. cutting equipment)4.7 kg
Chain speed at max power16.8 m/s
Cylinder displacement38 cm³
Fuel tank volume0.37 l
Sound pressure level at operators ear102 dB(A)
Bar length40 cm
Clutch engagement speed (±120)4000 rpm
Electrode gap0.55 mm
Equivalent vibration level (ahv, eq) front handle3.72 m/s²
Equivalent vibration level (ahv, eq) rear handle5.5 m/s²
Exhaust emissions (CO average) EU278.5 g/kWh
Exhaust emissions (CO average) EPA331 g/kWh
Exhaust emissions (HC average) EU41.7 g/kWh
Exhaust emissions (HC average) CARB40.85 g/kWh
Exhaust emissions (NOx average) EU1.11 g/kWh
Exhaust emissions (NOx average) EPA1.14 g/kWh
Fuel consumption725 g/kWh
Idling speed3000 rpm
Maximum power speed9000 rpm
Oil tank volume0.26 l
Product size height29 cm
Product size length41.7 cm
Product size width23 cm
Recommended bar length, max16 in
Recommended bar length, max40 cm
Recommended bar length, min14 in
Recommended bar length, min35 cm
Sound power level, guaranteed (LWA)116 dB(A)
Sound power level, measured114.34 dB(A)
Torque, max.1.84 Nm
Torque, max. at rpm8000 rpm
